SC DAMPER SYSTEM γ
SC DAMPER SYSTEM γ

SC DAMPER SYSTEM γ

“59.00 seconds” was recorded at TC2000

The exclusive use for NISSAN GT-R R35

The coilover kit for NISSAN GT-R R35 exclusive use has been completed. Pillow upper both in front and rear, HYPERCO spring, the 30 step damping adjustment, and steel bracket are adopted.

The KTS demo car with SC DAMPER SYSTEMγ and air intake & exhaust tune has recorded 59.00 seconds at TC2000 (Tsukuba circuit). At TC2000, the circular course which has very technical layout, suspension arrangement is the most important to stuff the time.

SC DAMPER SYSTEMγ developed by our experience and technique shows its real value at such circular course , because it's difficult to establish a lead in lap times by the power difference in the machines.

You can choose the spring rate from the following; 12k / 13k / 14k / 16k / 18k for front and 10k / 12k / 14k / 16k for rear. (Original rate is 14k for front and 14k for rear) Arrangement suitable for your car is possible.

SC DAMPER SYSTEM β ブラケット

  • Steel bracket, Anti-rust processed

    Steel material is used to suppress the weight, securing the strength. It has been anti-rust processed, to be able to correspond in personal severe four seasons in Japan.

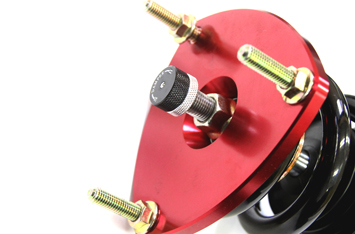

  • Fixed pillow upper mount

    To make a direct reaction achieved to driver's operation, pillow upper mount has been adopted. You can realize a more delicate handling.

  • The 30 step damping adjustment

    We achieved 30 step damping adjustment to correspond the weather, temperature or the tire abrasion which changes during the driving at circular course.

  • Mono tube upright absorber

    The gas chamber and an oil chamber are separated perfectly because of the mono tube upright structure. That restrains the decline of damping adjustment effect and the degradation of the oil.

  • Anodic oxide coating duralumin

    The lock ring and the lock sheet are made of anodic oxide coating duralumin. The dust boots and the bump rubber are included.

  • 【Product Specification】

    ・Mono tube upright structure

    ・The full-length adjustable

    ・The 30 step damping adjustment

    ・Pillow upper mount

    ・It's possible to change the spring rate.

    ・Overhaul available

    ・Steel bracket
